The Project

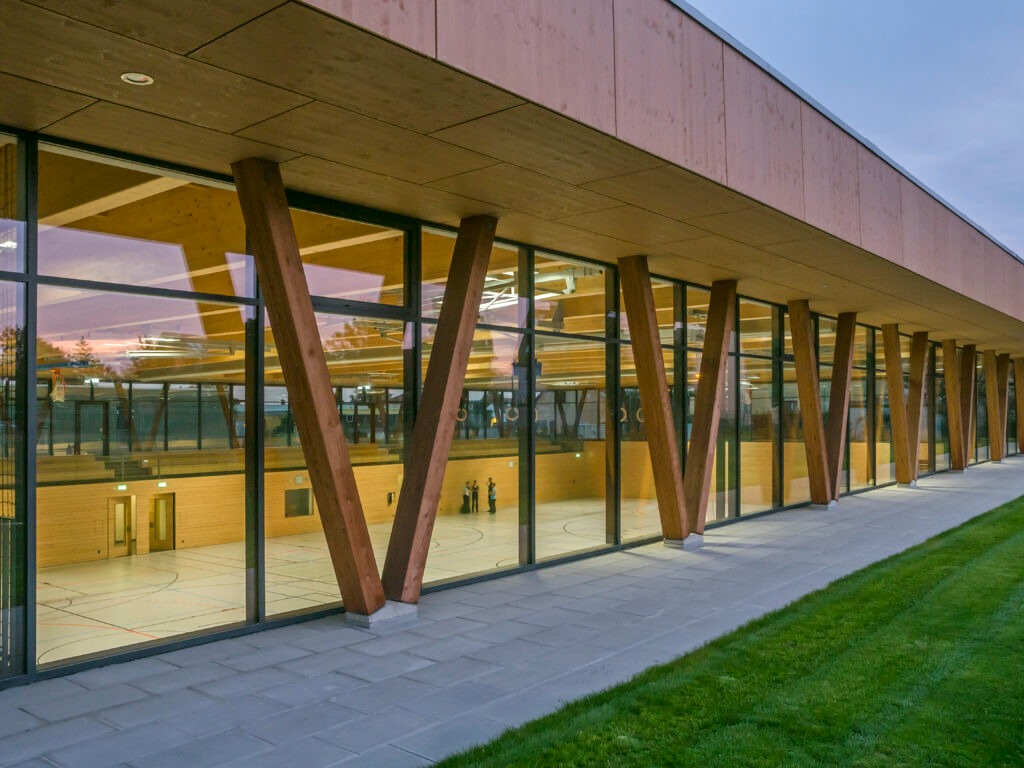

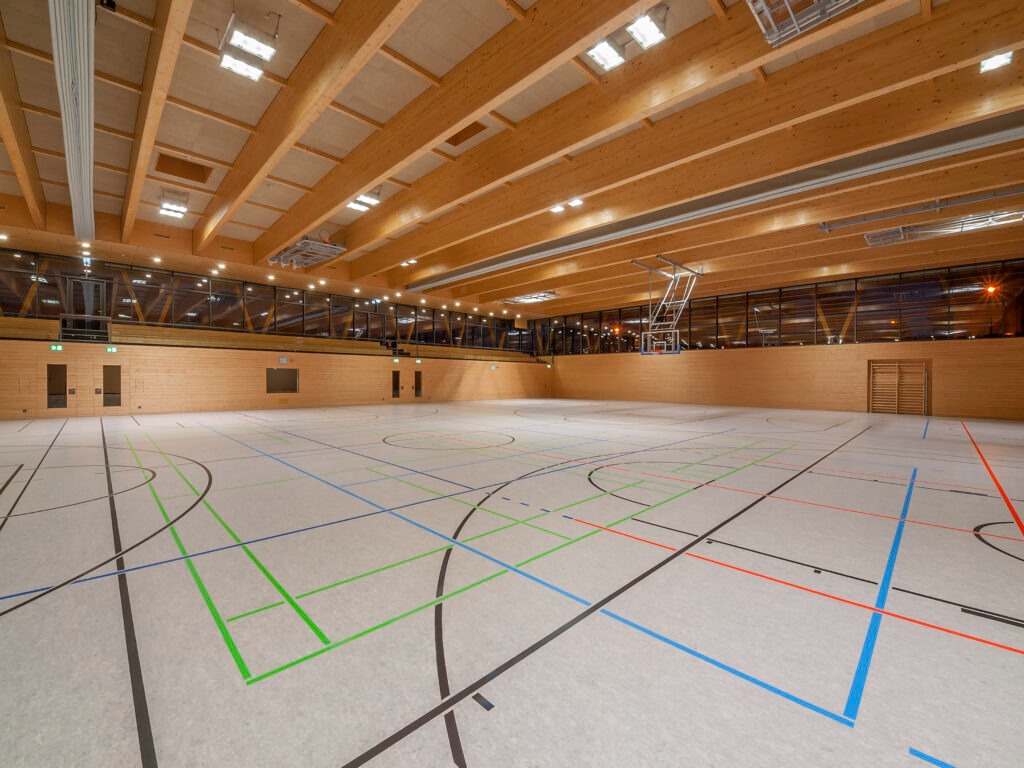

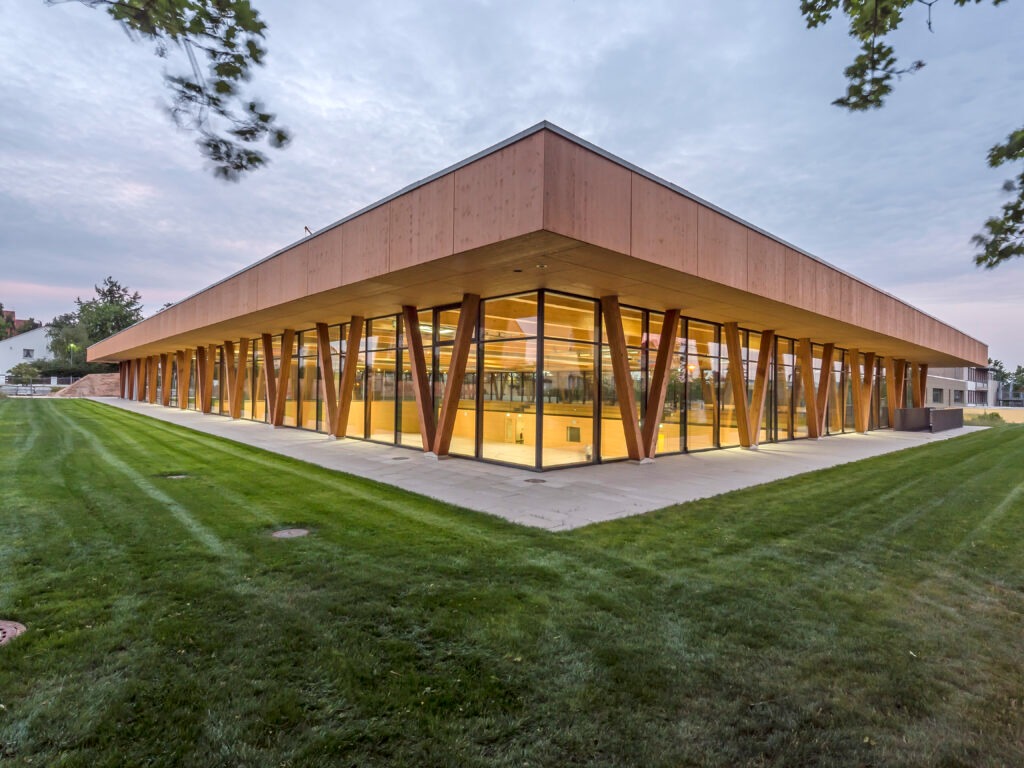

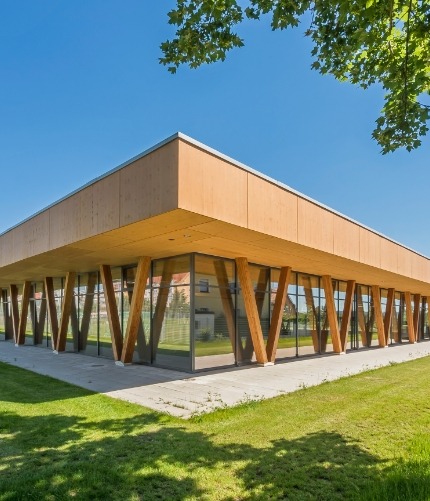

A triple sports hall was built for the city of Schwabach. The construction uses V-supports and a continuous top chord. The 2 m cantilevered BS trussed rafters span 32.10 m and form the roof structure.
The hip design was implemented with prefabricated, skewed elements, while the roof level was braced and stiffened by insulated rib elements.
Client
City of Schwabach
Alfred-Achilles-Str. 6/8
91126 Schwabach
Execution:
2013
Architect / Engineering office:
Heydorn Eaton Architekten
Schlesische Straße 29/30 i3
10997 Berlin
